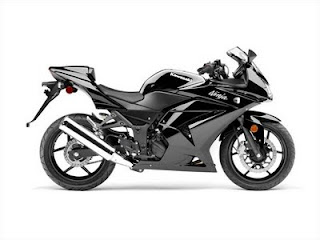

Kawasaki Ninja 250R Specification





General Specifications

Dimensions:
Overall Length 2085 mm (82.1 in.)
Overall Width 715 mm (28.1 in.)
Overall Height 1110 mm (43.7 in.)
Wheelbase 1400 mm (55.1 in.)
Road Clearance 130 mm (5.1 in.)
Seat Height 775 mm (30.5 in.)
Dry Mass 152 kg, (335 lb)

Curb Mass:
Front 82 kg (181 lb)
Rear 87 kg (192 lb)
Fuel Tank Capacity 18.0 L (4.8 US gal)

Performance:
Minimum Turning Radius 2.7 m (8.9 ft)

Engine:
Type 4-stroke, DOHC, 2-cylinder
Cooling System Liquid-cooled
Bore And Stroke 62.0× 41.2 mm (2.5 × 1.6 in.)
Displacement 249 cm³ (15.2 cu in.)
Compression Ratio 11.6
Maximum Horsepower 23.4 kW (31.8 PS) @11 000 r/min (rpm),
Maximum Torque 22.0 N•m (2.24 kg•m, 16.2 ft•lb) @9 500 r/min (rpm),
Carburetion System Carburetor, Keihin CVK 30× 2(AU), (IN-FI)
Starting System Electric starter
Ignition System Battery and coil (transistorized)
Timing Advance Electronically advanced
Ignition Timing From 10° BTDC @1 300 r/min (rpm)
35° BTDC @4 000 r/min (rpm)
Spark Plug NGK CR8E or ND U24ESR-N
Cylinder Numbering Method Left to Right, 1-2
Firing Order 1-2

Valve Timing:
Lubrication System Forced Lubrication (wet sump)

Engine Oil:
Grade API SE, SF or SG
API SH, SJ or SL with JASO MA
Viscosity SAE10W-40
Capacity 1.7 L (1.80 US qt)

Drive Train:
Primary Reduction System:

Type Gear:
Reduction ratio 3.087 (71/23)
Clutch Type Wet multi disc

Transmission:
Type 6-speed, constant mesh, return shift

Gear Ratios:
1st 2.600 (39/15)
2nd 1.789 (34/19)
3rd 1.409 (31/22)
4th 1.160 (29/25)
5th 1.000 (27/27)
6th 0.893 (25/28)

Final Drive System:
Type Chain drive
Reduction Ratio 3.214 (45/14) (AU) 3.071 (43/14)
Overall Drive Ratio 8.859 @Top gear (AU) 8.466 @Top gear

Frame:
Type Tubular, diamond
Caster (Rake Angle) 26°
Trail 82 mm (3.2 in.)

Front Wheel:
Tire Type Tubeless
Tire Size 100/70-17M/C 54H
Rim Size 17 × 2.75

Rear Wheel:
Tire Type Tubeless
Tire Size 130/70-17M/C 62H
Rim Size 17 × 3.50

Front suspension:
Type Telescopic fork
Wheel Travel 120 mm (4.7 in.)

Rear Suspension:
Type Swingarm (uni-trak)
Wheel Travel 130 mm (5.1 in.)

Brake Type:
Front Single disc
Rear Single disc
Electrical Equipment
Battery 12V / 6Ah

Headlight:
Type Semi-sealed beam

Bulb:
High 12V / 55W + 55W (quartz-halogen)
Low 12V / 55W (quartz-halogen)
Tail/brake Light 12V / 5/21W

Alternator:Type Three-phase AC
Rated Output 19A @5 000 r/min (rpm), 14V

*Specifications are subject to change without notice, and may not apply to every country. (This is AU model, the given specification is not for Indian Model.)
*All the details may vary from actual specifications.
